FL-24
FL-24
Standard Liner Panel - 24" Coverage

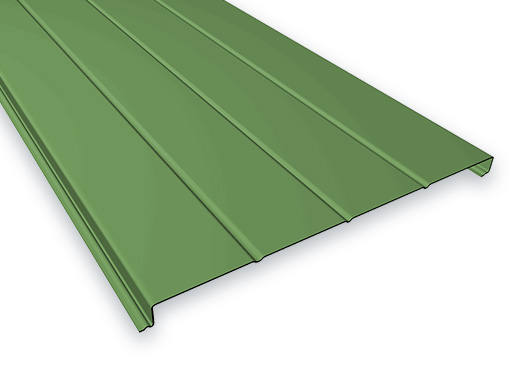

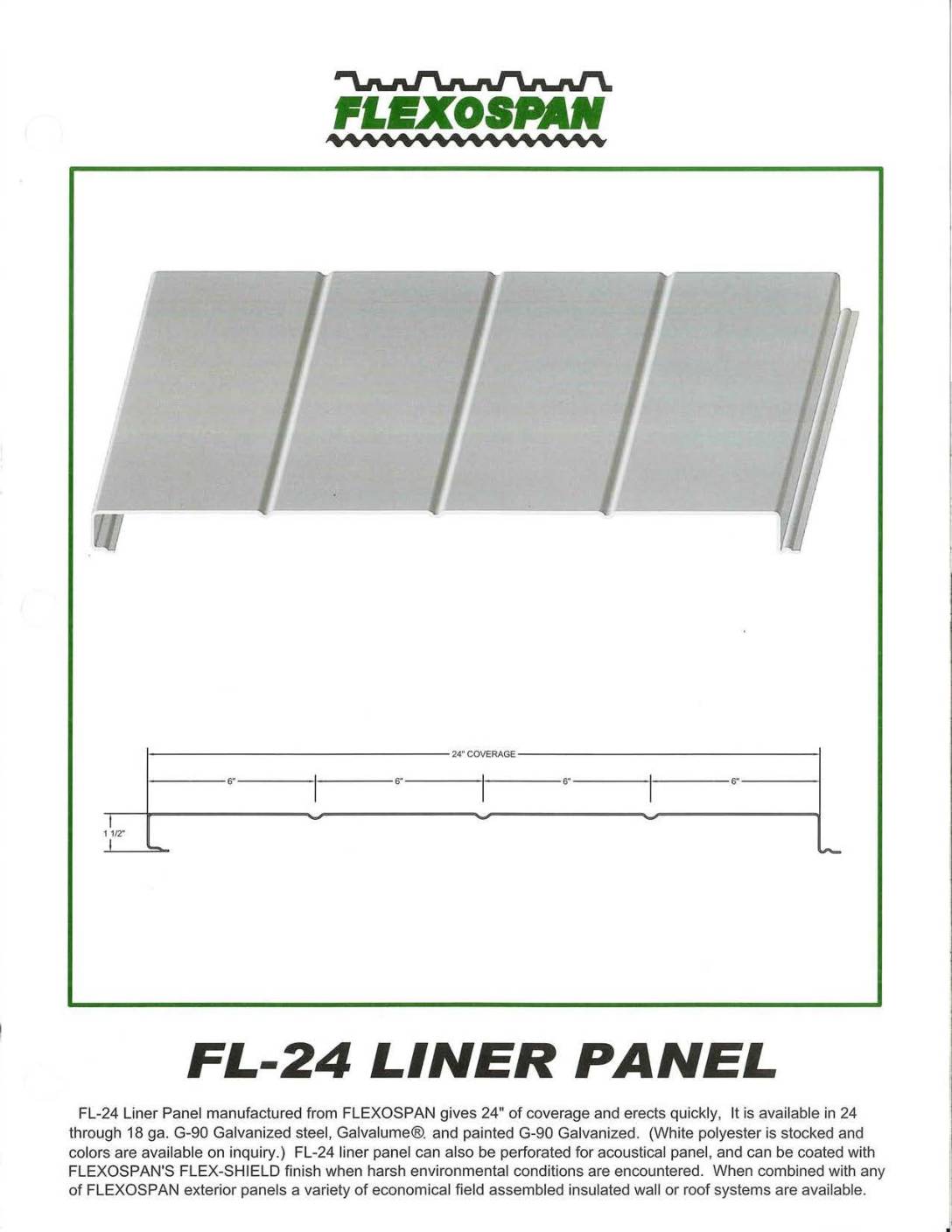

The Flexospan FL-24 is our standard liner panel. It provides 24″ of coverage and comes standard with three stiffening ribs. It’s useful as a flat liner panel for both roofing and siding wall applications where additional insulation or strength is required.
The FL-24 can be perforated for use as an acoustic panel, coated with our Flexshield finish for harsh chemical environments.
Features
- Coverage Width: 24″
- Gauges: 18, 20, 22, & 24 ga
- Materials: G-90 Galvanized, Galvalume, Acrylic-Coated Galvalume, Stainless Steel
Standard Colors:
Flexospan offers 15 standard colors in four coating systems. Custom colors, finishes and painted aluminum can be special ordered with a minimum quantity requirement.
These colors are approximations only. Given the inherent differences between computer monitors, colors may vary widely from actual color samples. Contact Flexospan for a color chart. Metal samples of actual color and finish are also available.
*Non-standard colors and narrow width may be ordered at minimum quantities
profile:
coatings & finishes:
*Flexospan offers four standard coatings, each providing a different level of protection, as well as a mill finish. The coatings are available in our standard colors, or in custom colors as a special order.
view more details on coatings & finishes
FL-24 | more details:

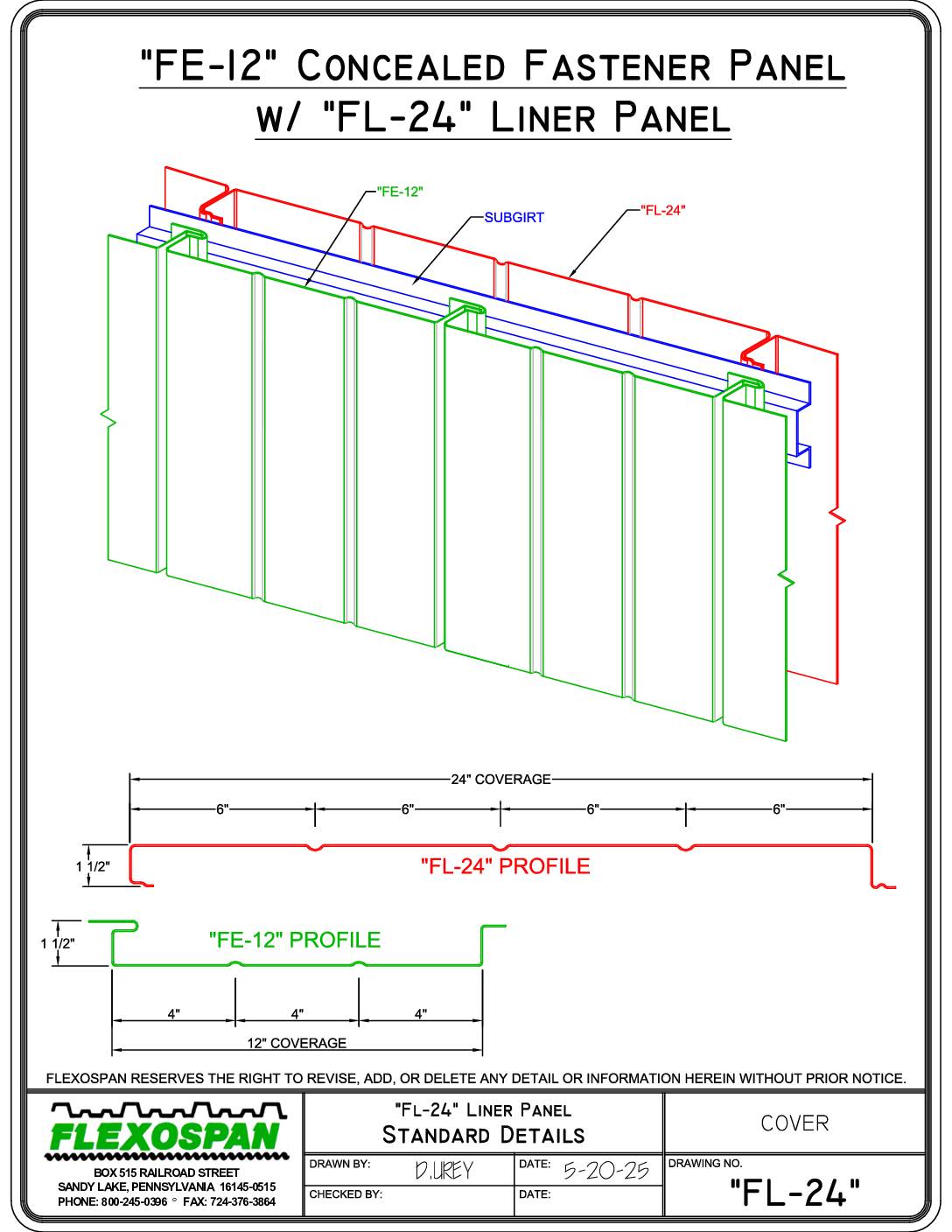

It can also be used with any of our exterior panels to create a field-assembled insulated wall or roof system.

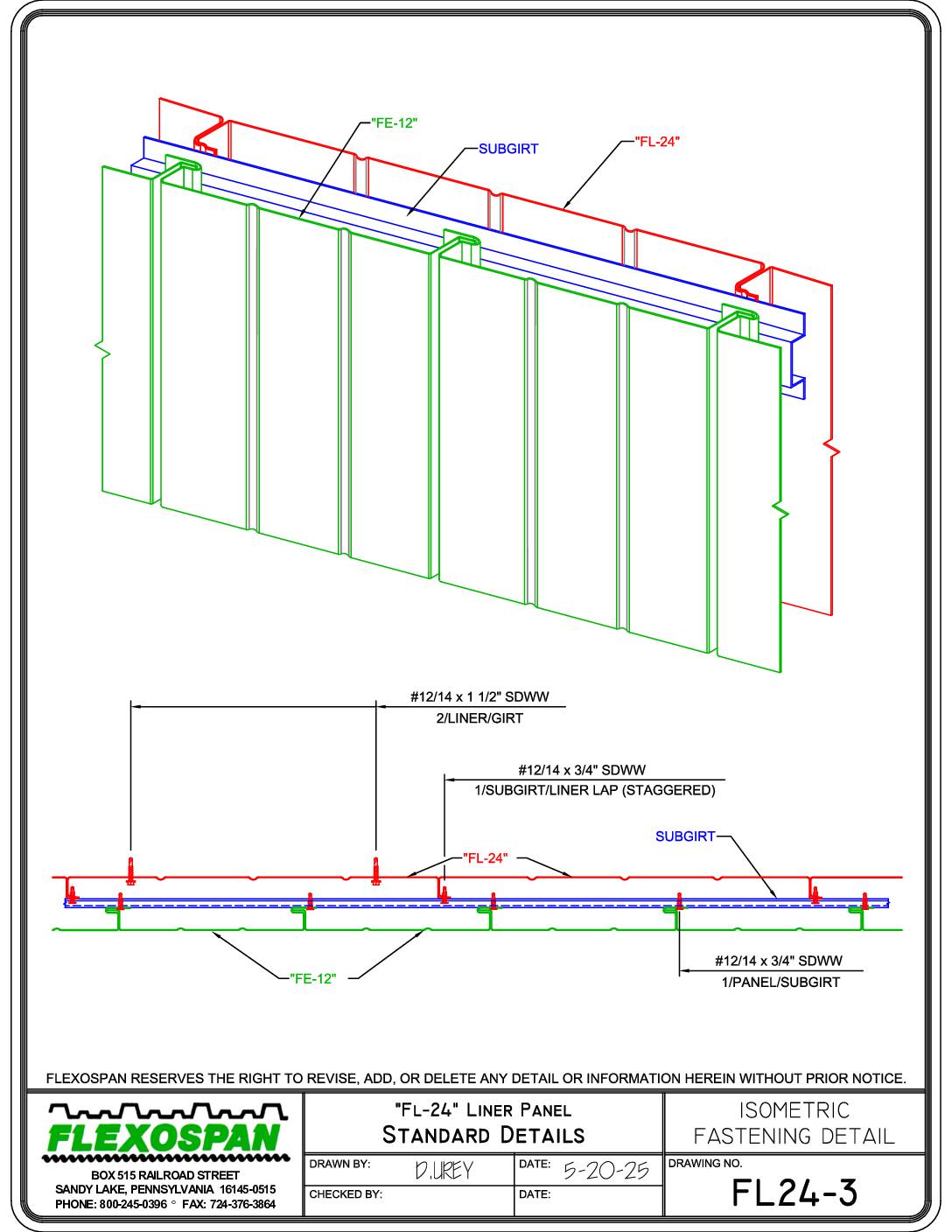

As an exterior liner, it’s designed to be erected on the outside of purlin and girts, with a sub girt applied and the exterior panel attached to the sub girt.
It may also be used as an interior liner on the girts of a wall or the purlins of the ceiling.
Standard finish is white polyester, this panel is available in special colors and finishes, however minimum quantity requirements apply.
For information on loads, contact Flexospan.
