FE-66
FE-66
Architectural Siding Wall Panel w/Concealed Fastener

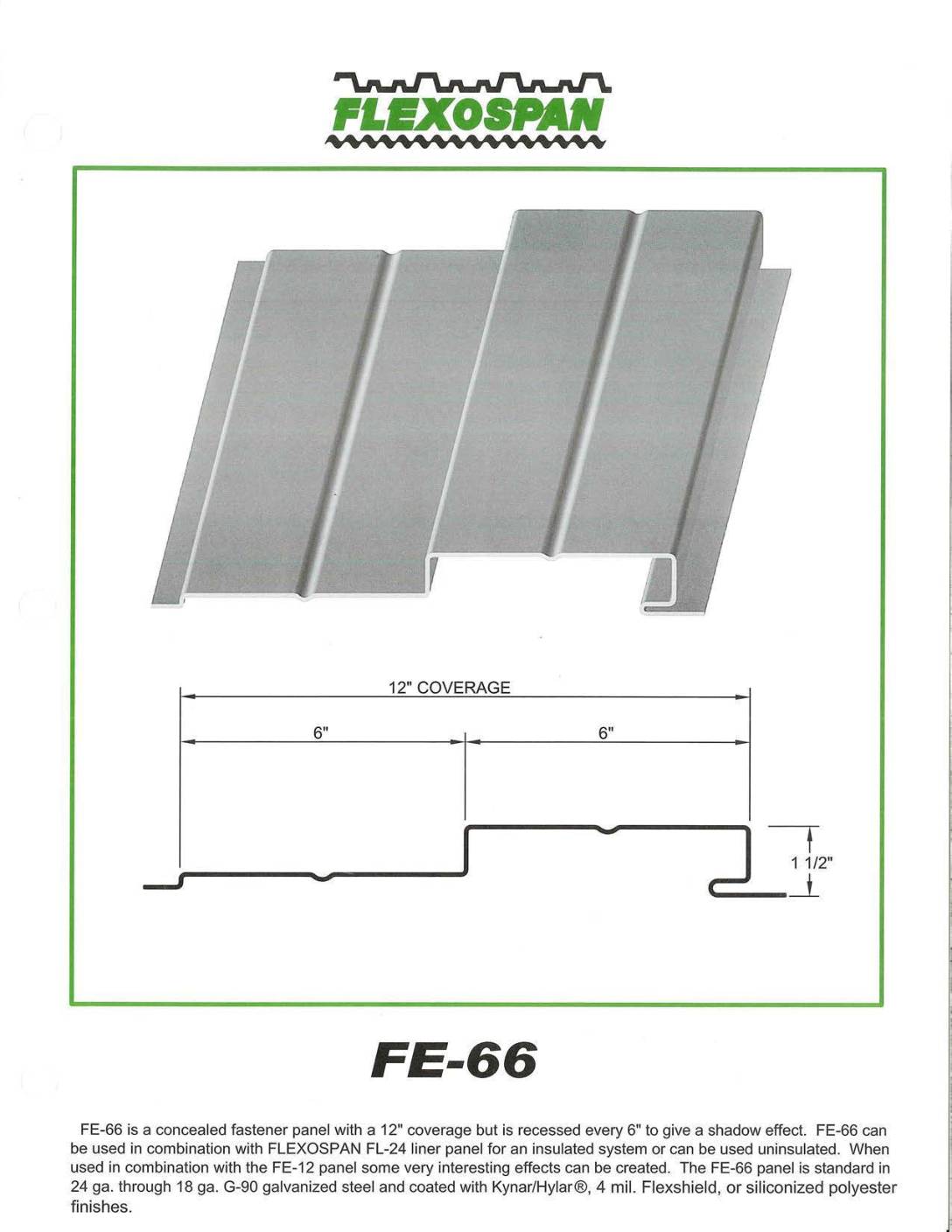

FE-66 is a concealed fastener panel with a 12″ coverage but is recessed every 6″ to give a shadow effect. FE-66 can be used in combination with our FL-24 liner panel for an insulated system or can be used without insulation.
When used in combination with the FE-12 panel some very interesting effects can be created.
Features
- Coverage Width: 12″
- Gauges: Stainless Steel: 18, 20, 22, & 24 ga, G-90: 18, 20, 22, & 24 ga
- G-90 Galvanized Coatings: Siliconized Polyester, Flexshield, Kynar/Hylar based finishes
Standard Colors:
Flexospan offers 15 standard colors in four coating systems. Custom colors, finishes and painted aluminum can be special ordered with a minimum quantity requirement.
These colors are approximations only. Given the inherent differences between computer monitors, colors may vary widely from actual color samples. Contact Flexospan for a color chart. Metal samples of actual color and finish are also available.
*Non-standard colors and narrow width may be ordered at minimum quantities

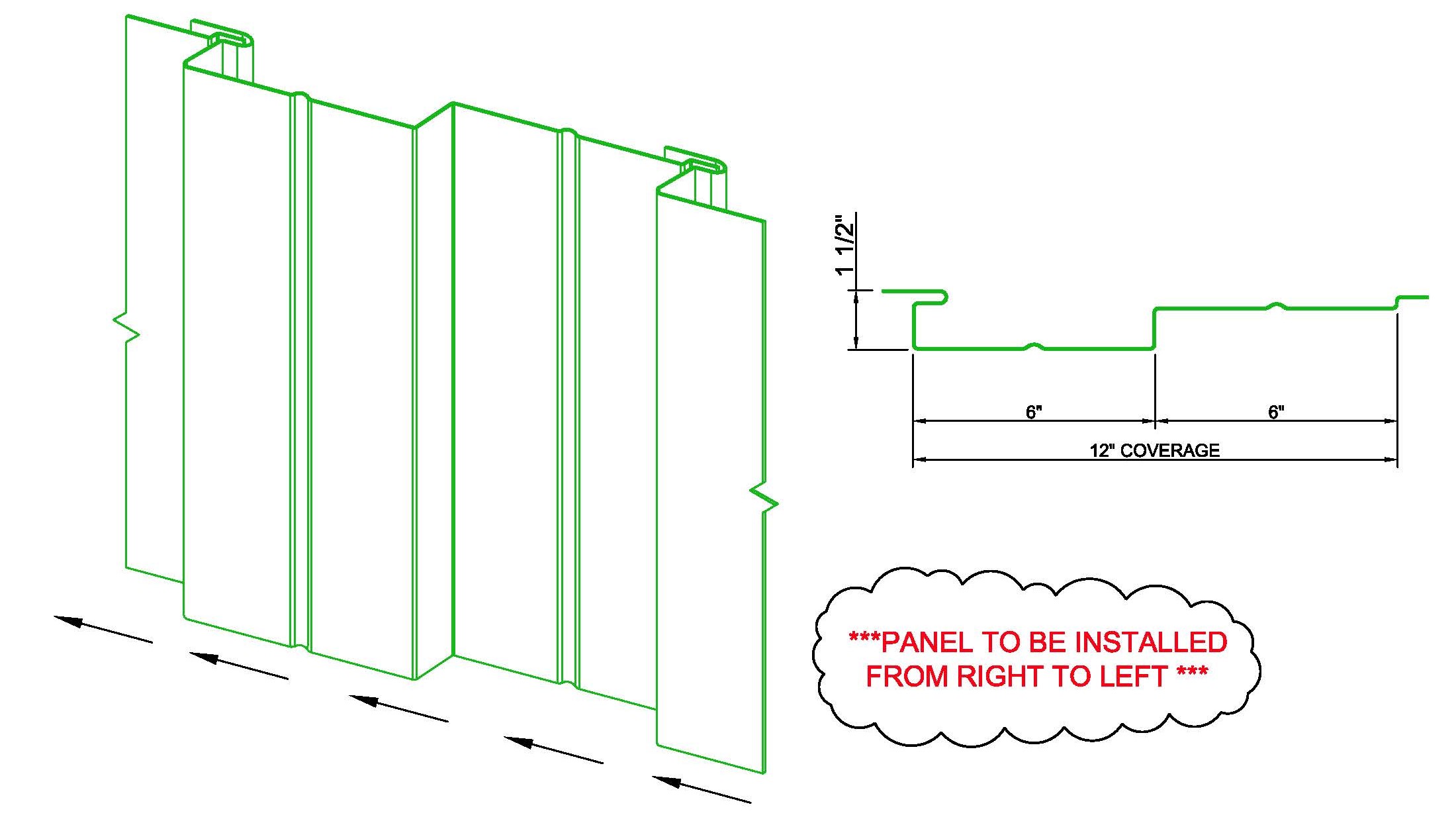

profile:
coatings & finishes:
*Flexospan offers four standard coatings, each providing a different level of protection, as well as a mill finish. The coatings are available in our standard colors, or in custom colors as a special order.
view more details on coatings & finishes
FE-66 | more details:
Flexospan’s FE-66 and FE-12 concealed fastener architectural siding wall panels are among our most versatile. The FE-66 is a 12″-wide panel, recessed every six inches to provide a shadow effect.
Industrial Corrosion Resistant Finish
The FE-12 is a 12″-wide, flush panel, with stiffener ribs. It has a clean, flat appearance. The two wall panels can be used alone, or in combination to create interesting, highly architectural effects.
