2.67" X 7/8" CORRUGATED
2.67" x 7/8" Corrugated
Metal Roofing & Siding Panel
Flexospan offers two corrugated roofing and siding wall panel products that are are suitable for projects requiring a cost-effective, yet strong panel. Our 7/8″- roofing panel is the best choice for projects with large spans, where cost containment is important.

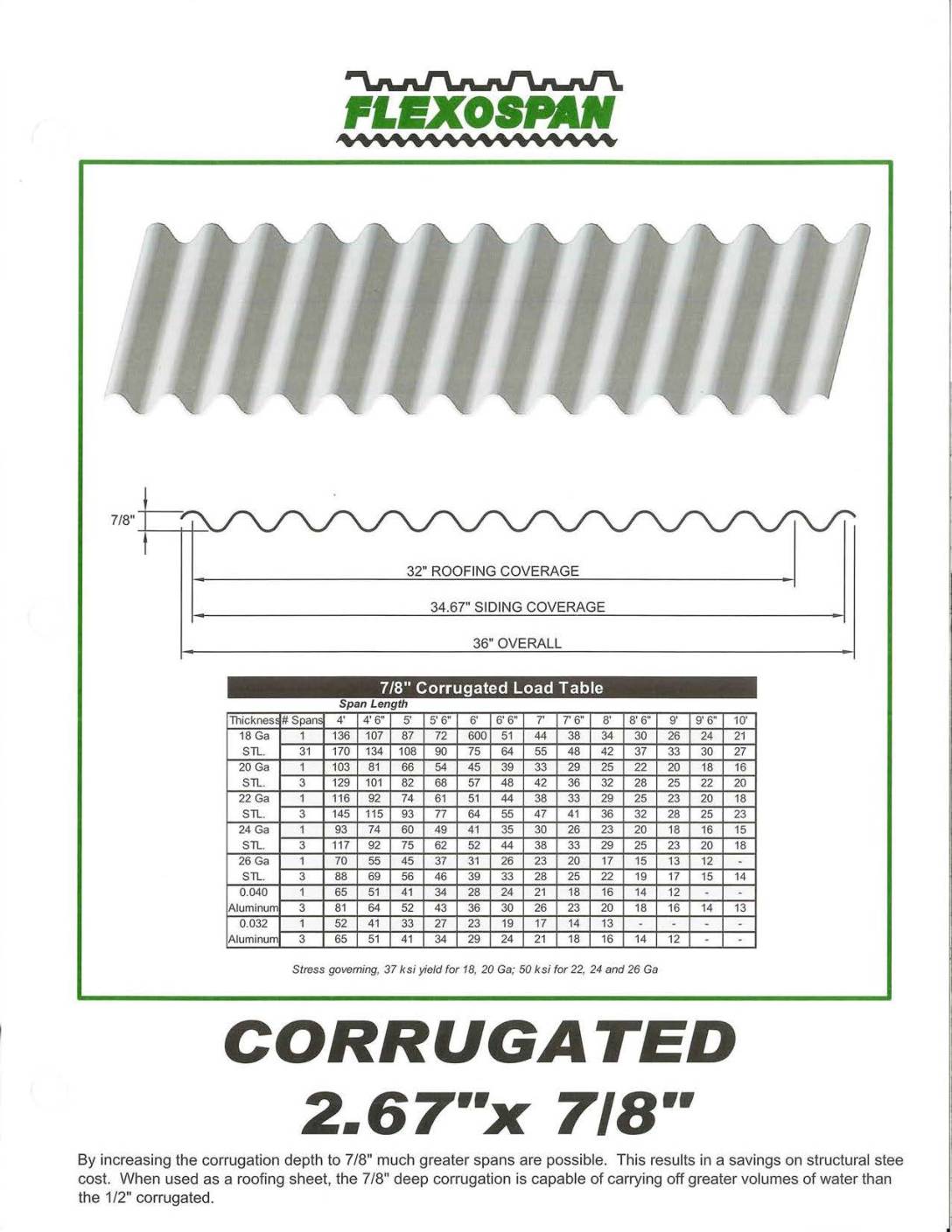

By increasing the corrugation depth to 7/8″, much greater spans are possible. This results in a savings on structural steel cost. When used as a roofing sheet, the 7/8″ deep corrugation is capable of carrying off greater volumes of water than the 1/2″ corrugated, making it useful for roofing applications.
The Flexospan 7/8″ corrugated roofing panel is used for medium-length spans, or when strength is important.
Features

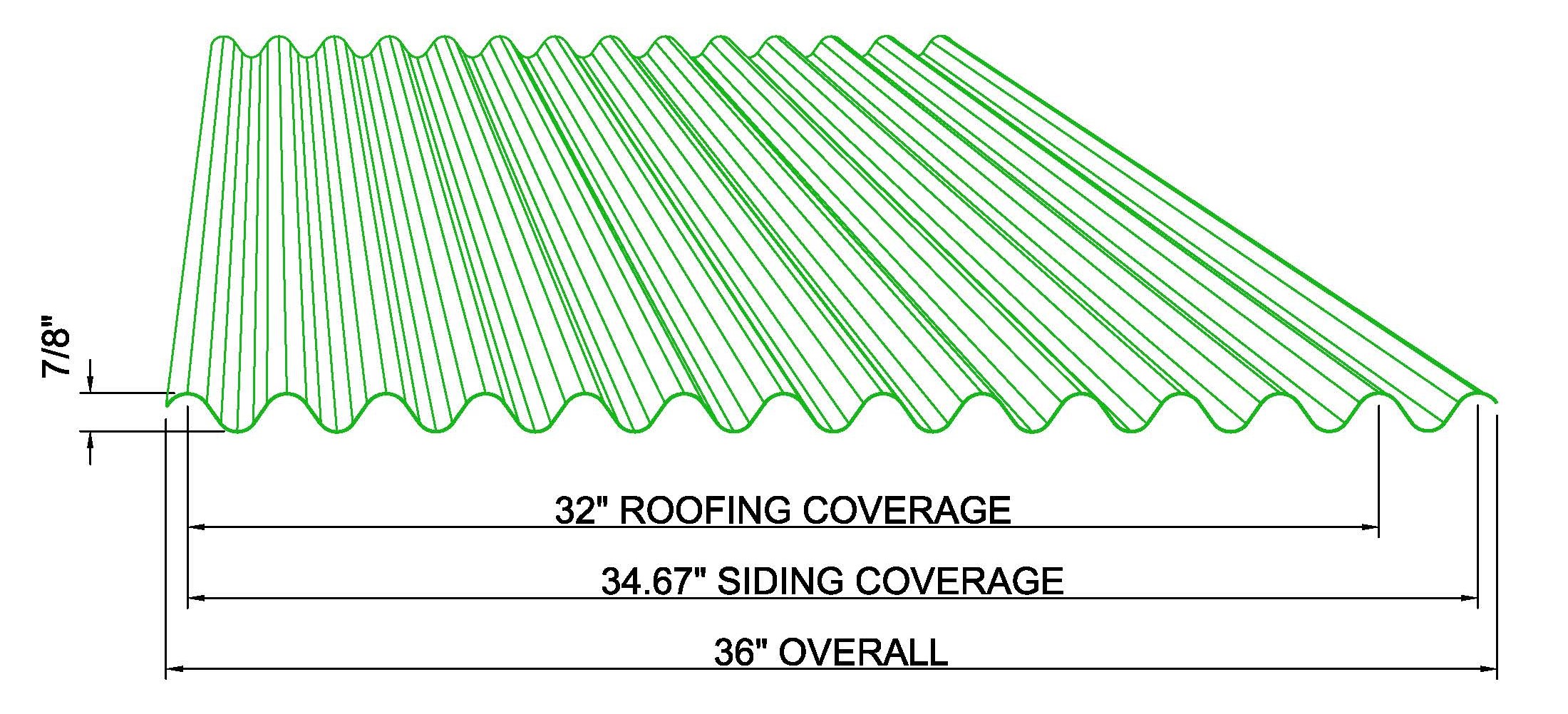

- Coverage Width: Roofing: 32″, Walls: 34.67″
- Gauges: Aluminum: .032”, 0.40”| Stainless Steel 18, 20, 22, & 24 ga|Steel: 18, 20, 22, 24 & 26 ga
- Materials: G-90 Galvanized Painted or Unpainted, Galvalume, Acrylic-Coated Galvalume, Stainless Steel, Aluminum
Standard Colors:
Flexospan offers 15 standard colors in four coating systems. Custom colors, finishes and painted aluminum can be special ordered with a minimum quantity requirement.
These colors are approximations only. Given the inherent differences between computer monitors, colors may vary widely from actual color samples. Contact Flexospan for a color chart. Metal samples of actual color and finish are also available.
*Non-standard colors and narrow width may be ordered at minimum quantities
profile:
coatings & finishes:
*Flexospan offers three standard coatings, each providing a different level of protection, as well as a mill finish. The coatings are available in our standard colors, or in custom colors as a special order.
view more details on coatings & finishes
7//8" Corrugated | more details:

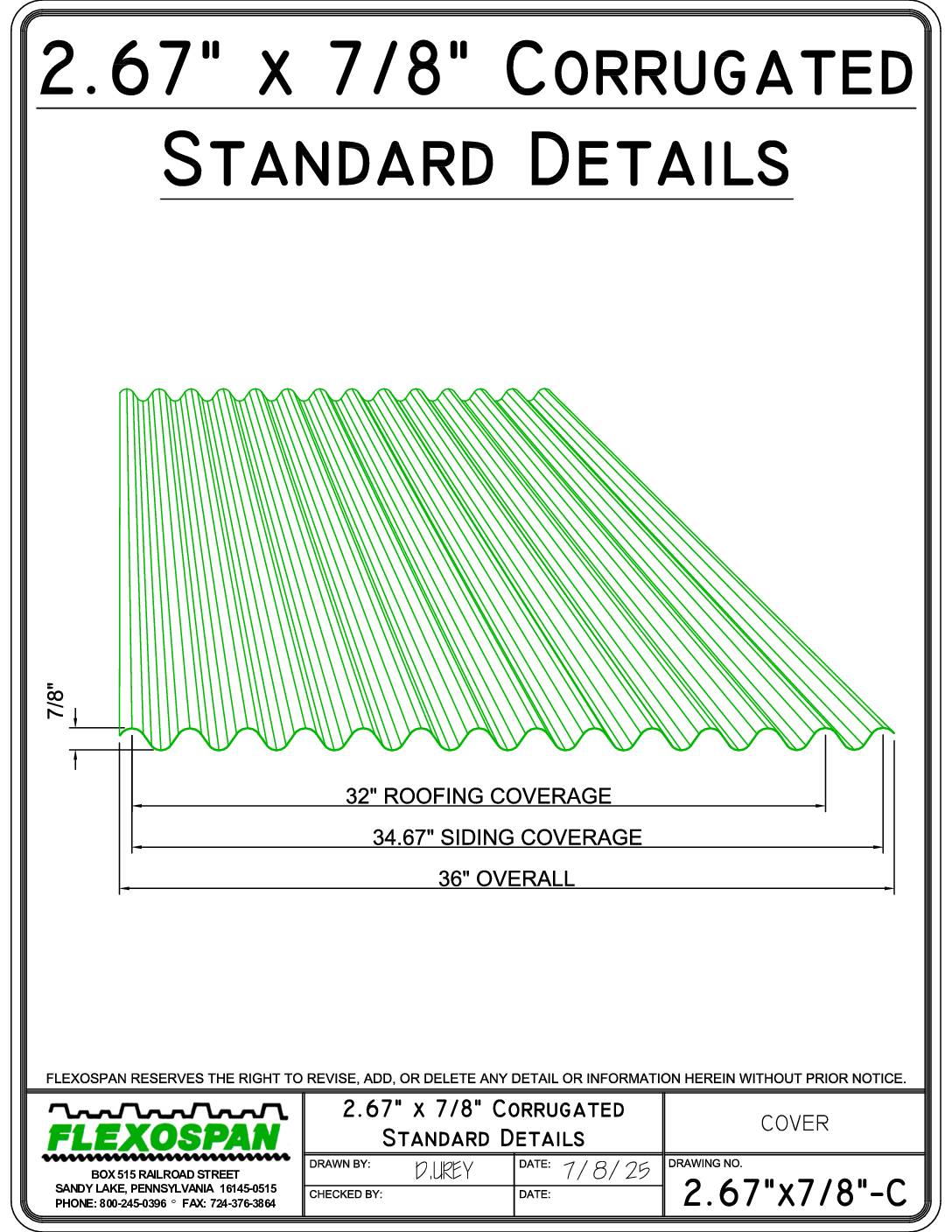

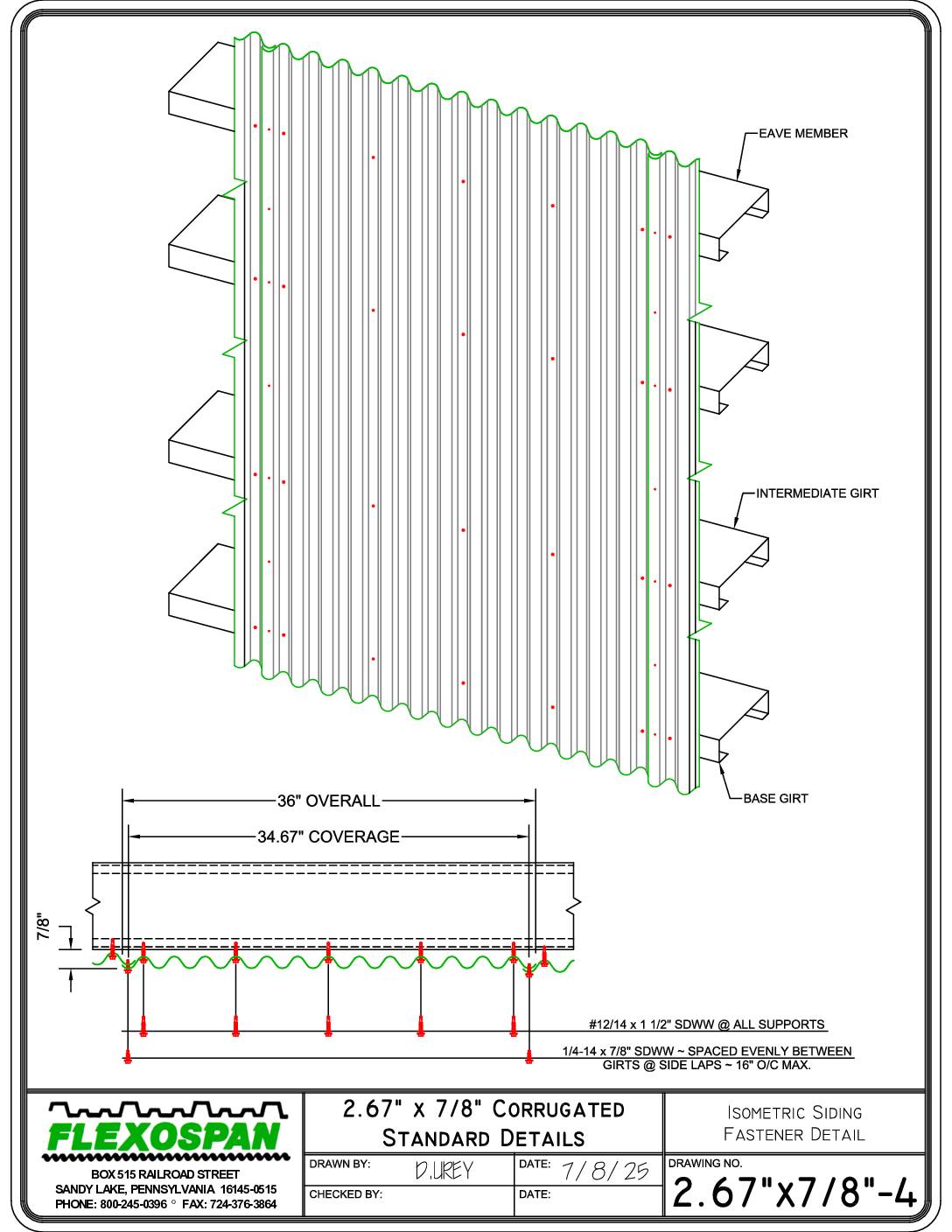

Flexospan manufactures roofing and wall panel products from our stocked, 44″ coil width and a 36″ width. Our 44″ coil yields an overall panel width of 36″, a roofing coverage of 32″ and a wall coverage of 34.67 inches for the 7/8″ panel. Narrower widths are available. Minimum quantities apply. Check with factory for availability.
