Flexrib

Features

  • Coverage Width: 36″
  • Gauges:  Steel: 18, 20, 22, 24 & 26 ga| Stainless Steel: 18, 20, 22 & 24 ga
  • Materials: G-90 Galvanized Painted or Unpainted, Galvalume, Acrylic-Coated Galvalume, Stainless Steel, Aluminum

Standard Colors :

Flexospan offers 15 standard colors in four coating systems. Custom colors, finishes and painted aluminum can be special ordered with a minimum quantity requirement.

These colors are approximations only. Given the inherent differences between computer monitors, colors may vary widely from actual color samples. Contact Flexospan for a color chart. Metal samples of actual color and finish are also available.

*Non-standard colors and narrow width may be ordered at minimum quantities

profile:

Flexrib profile line drawing in red

coatings & finishes:

*Flexospan offers four standard coatings, each providing a different level of protection, as well as a mill finish. The coatings are available in our standard colors, or in custom colors as a special order.

view more details on coatings & finishes

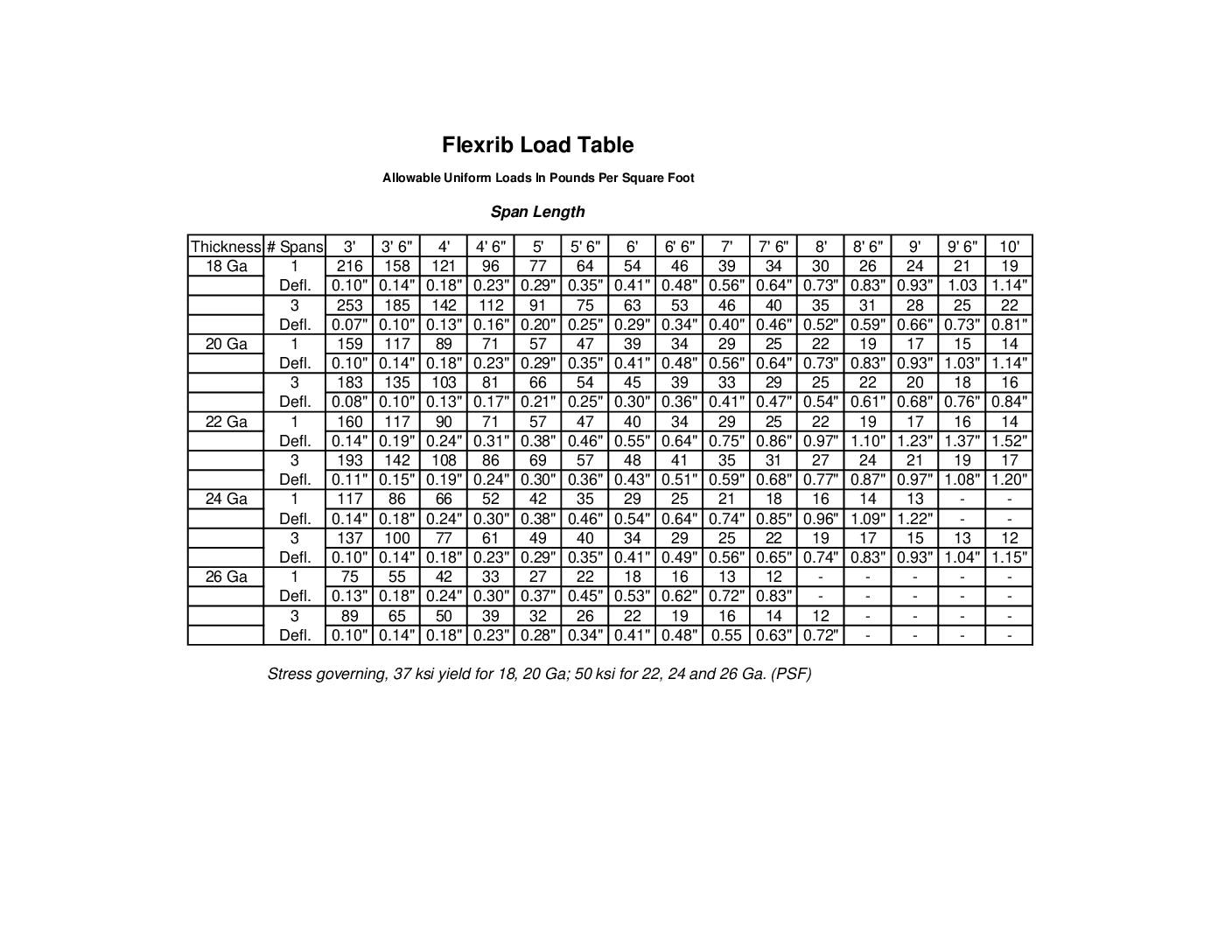

Load Table
Specifications Data Sheet
Section Properties (All Panels)
ARCAT Spec Wizard
arcat-specwizard logo

Flexrib | more details:

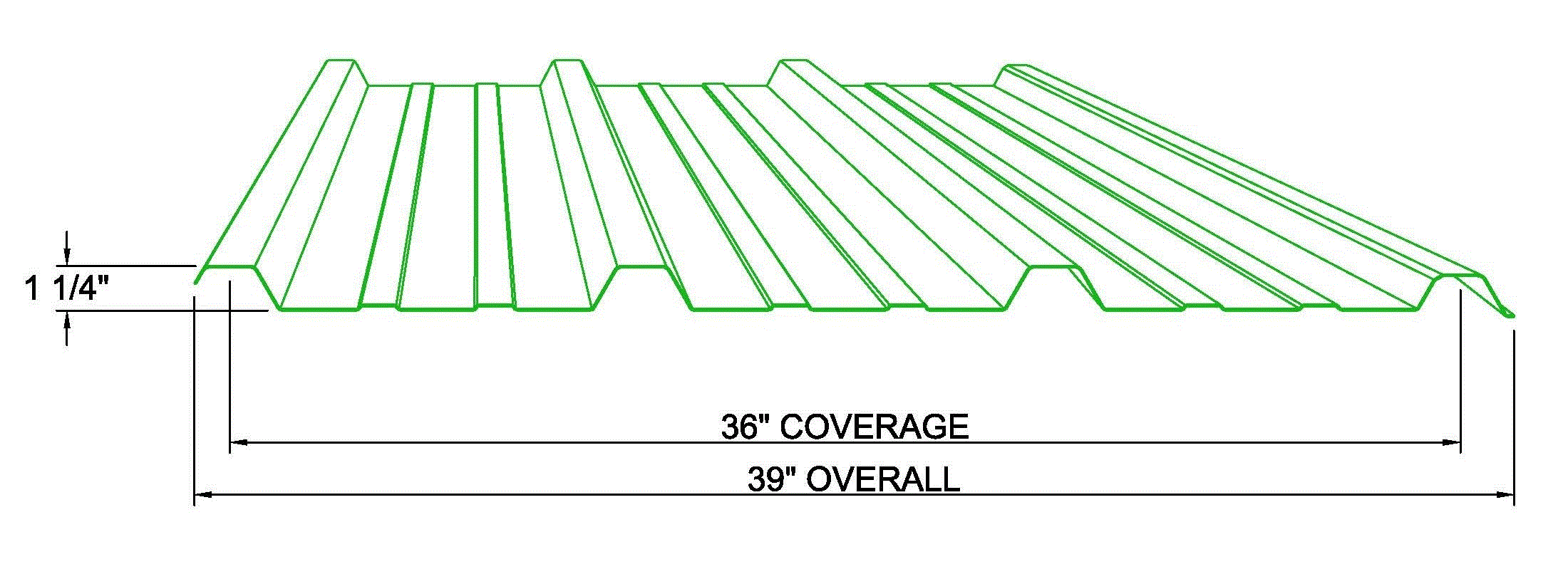

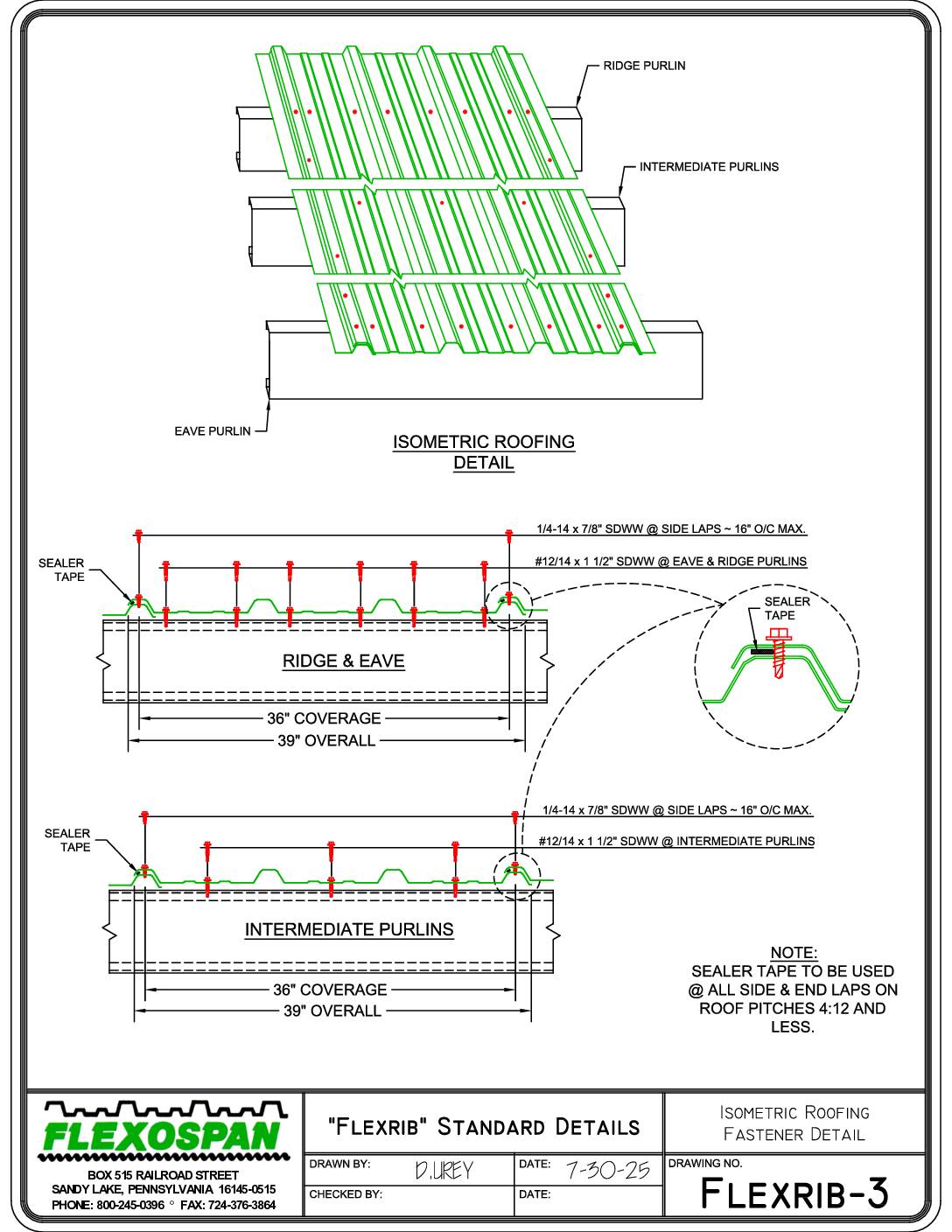

Flexrib panels are 39″ wide (covering 36″), and have three major ribs 1 1/4″ deep with two stiffening ribs between the major ribs.
